Compact CMOS Spectrometer Compact And High-Performance Solution For Spectral Analysis

Ask Lasest Price
Brand Name :	JINSP
Model Number :	SR50C
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	100 PCS/30-40 days
Delivery Time :	30-40 working days

Add to Cart

Product Details
Company Profile

Compact CMOS Spectrometer Compact And High-Performance Solution For Spectral Analysis

Compact Modular Fiber Optic Spectrometer 200nm - 1100nm

Designed for harsh environmental conditions, the SR50C features IP65-rated housing with MIL-STD shock resistance. Its adaptive grating automatically optimizes resolution (0.3-5nm selectable) for different water matrices - from turbid wastewater to clear drinking supplies. It is a perface spectrometer module for integrating in water quality analytis device.

The embedded AI-powered spectral library accelerates identification of phosphorus compounds and associated pollutants. Environmental monitoring teams gain lab-grade accuracy in portable field instruments, reducing sample transportation costs and analysis delays by 80% compared to conventional methods.

Technical Parameters:

Detector	Chip Type	Linear array CMOS, Hamamatsu S11639
	Eﬀective Pixel	2048
	Pixel Size	14μm *200μm
	Sensing Area	28.7mm *0.2mm
Optical Parameters	Numerical Aperture	0.14
	Focal Length	≤ 50mm
	Entrance Slit Width	10μm, 25μm, 50μm, 100μm, 200μm
	Resolution	See list of product models for details
	Fiber Interface	SMA905, free space
Electrical Parameters	Integration Time	1ms-60s
	Signal-to-Noise Ratio	650:1(4ms)
	Data Output Interface	Type-C
	ADC Bit Depth	16-bit
	Power Supply	DC 4.5V to 5.5V (type @5V)
	Operating Current	< 500mA
Others	Operating Temperature	10°C ~ 40°C
	Storage Temperature	-20°C ~ 60°C
	Operating Humidity	＜90%RH (no condensation)
	Dimensions	79mm68mm42mm
	Weight	220g

List of Product Models:

Model	Spectral Range (nm)	Resolution (nm)	Slit (μm)
SR50C-G01	200~1000( UV-NIR)	3.5	50
		2.4	25
		1.5	10
SR50C-G03	350~870(VIS)	2.5	50
		2.0	25
		1.2	10
SR50C-G04 SR50C-G07 SR50C-G08	200~550(UV) 350~700(VIS) 780~1050(NIR)	1.8	50
		1.3	25
		0.8	10
SR50C-G09 SR50C-G10	200~450(UV) 525~700(VIS)	1.0	50
		0.6	25
		0.3	10

* Customization available for other ranges

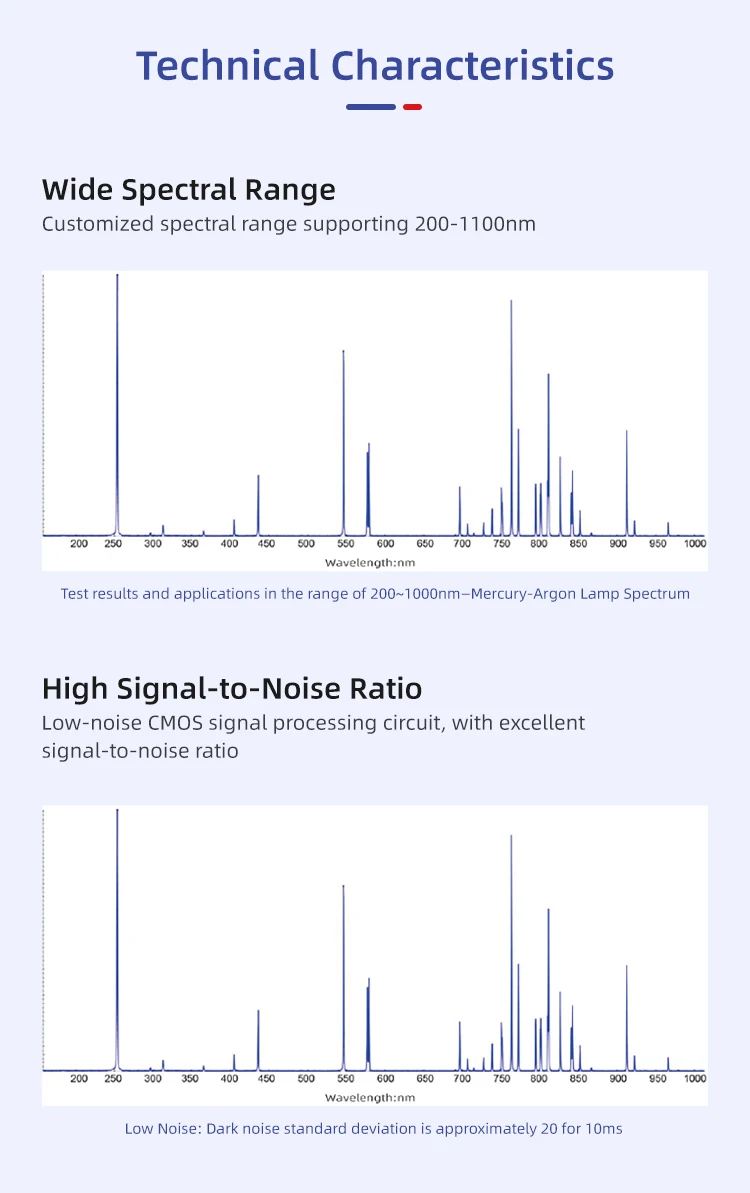

Technical Characteristics:

Wide Spectral Range
Customized spectral range supporting 200-1100nm
High Signal-to-Noise Ratio
Low-noise CMOS signal processing circuit, with excellent signal-to-noise ratio

Applications:

Supports detection of absorption, transmittance and reflectivity of ultraviolet, visible light and near infrared radiations.
Light source and laser wavelength identification.
OEM product module:

Environmental protection industry (smoke and water quality monitoring),

LIBS, fluorescence spectrum,

Raman spectrum.

Portable Spectrometer SR50C with Integrated Temperature Sensor

Company Introduction:

JINSP Company Limited has won the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate and the China Patent Excellence Award, and related products have been obtained has won authoritative awards such as the Geneva International Invention Award, the Beijing New Technology and New Product Certificate, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.GB/T 40219-2021 "General Specification for Raman Spectrometer".

JINSP Company received ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications. JINSP can provide required certifications, such as certification by the Ministry of Public Security or National Institute of Metrology, Environmental Level Certification, IP Level Certification, CE Certification, Transport Identification Report, EU ECAC certification, German ICT Security Testing, etc.

We uphold the core value of "customer-centric" to ensure that every customer can enjoy unprecedented flexibility and personalized experience. From the initial concept to the final product, we work closely together to ensure that every detail is accurately aligned with customer expectations, and together create exclusive products that exceed expectations.

Compact CMOS Spectrometer Compact And High-Performance Solution For Spectral Analysis

FAQ:

Q: What is the brand name of this fiber spectrometer?

A: JINSP is the brand name of this fiber spectrometer.

Q: What is the model number of this fiber spectrometer?

A: The model number of this fiber spectrometer is SR50C.

Q: What certification does this fiber spectrometer have?

A: This fiber spectrometer has CE certification.

Q:Where is this fiber spectrometer made?

A:This fiber spectrometer is made in China.

Q:What are the payment terms for this product?

A:The payment terms for this product are T/T and Western Union. Prices are negotiable.
