    Industrial ST100S Transmission Grating Spectrometer Ultra High Sensitivity

    Ask Lasest Price
    Brand Name : JINSP
    Model Number : ST100S
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100 PCS/70-90 days
    Delivery Time : 40-70working days
    • Product Details
    • Company Profile

    Industrial ST100S Transmission Grating Spectrometer Ultra High Sensitivity

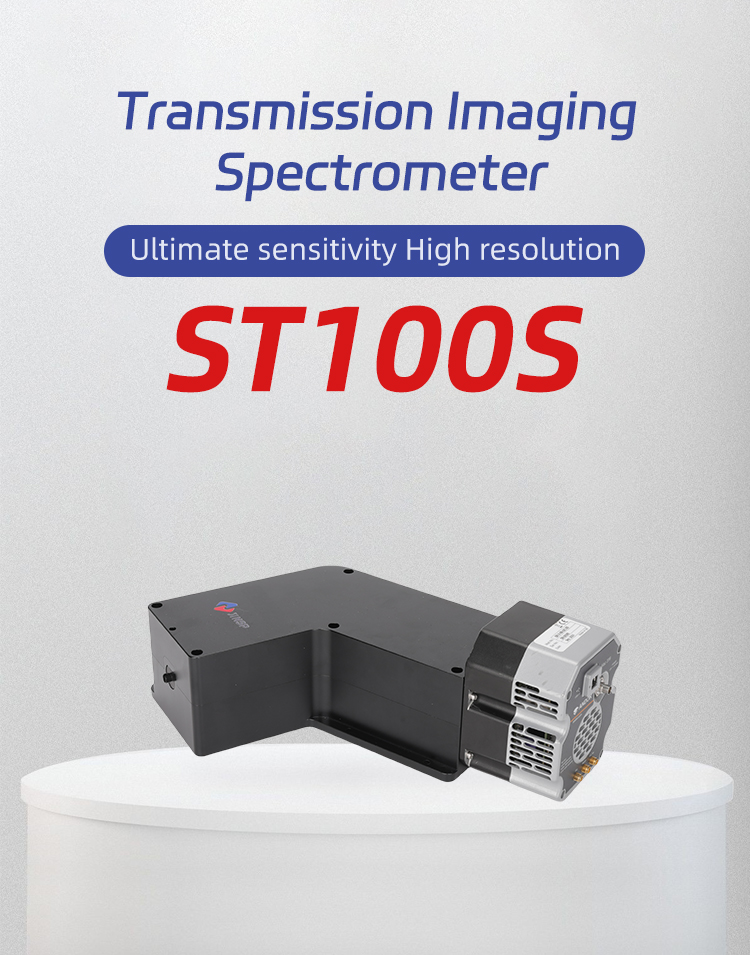

    Ultra-high sensitivity ST100S transmission imaging spectrometer

    JINSP ST100S transmission imaging spectrometer is equipped with an Deep-cooling area array CCD camera of scientific research level,VPH volume phase holographic grating with diffraction efficiency close to 90%. it can achieve excellent sensitivity and SNR,with sensitivity 5~10 times that of reflection spectrometer and resolution twice that of traditional

    spectrometer.

    With a resolution of up to 3 cm, the ST100S can be coupled with a scientific research level 785nm laser Raman system to detect the Raman spectrum of materials and biological samples. Furthermore, it is more appropriate for industrial integration due to its compact design and good stability when compared to huge long-focus reflection spectrometers like the f300mm and f500mm.


    OEM miniature spectrometer high-sensitivity fiber spectrometer optic spectrometer

    Features

    • High CompatibilityCompatible with multiple scientific research grade cooling cameras such as PI and Andor, with
      ultra-low dark current and noise
    • Zero-aberration Zero aberration design, diffraction-limited resolution, support multiple channels
    • High Diffraction Efficiency VPH grating, diffraction efficiency up to 90%
    • Support multiple channels Compatible with SMA905 fiber, FC connector, and Φ10mm multi-core fiber interface
    • High Flux High flux, numerical aperture is 0.25
    • Highly stable No adjustable components, applicable to labs and industries

    Technical Parameters

    Product NameST100S Transmission Imaging Spectrometer
    Wavelength Range
    785nm~988nm
    corresponds to 0~2600cm-1
    Optical Resolution
    0.35nm, corresponds to 5cm-1(50μm slit)
    0.25nm, corresponds to 3cm-1(25μm slit)
    Grating TypeVPH volume holographic transmission grating
    Diffraction Efficiency
    >85%
    Fiber InterfaceSMA905 or Ф10mm multi-core optical fiber
    Integration Time1ms-3600s
    Dimensions
    354.9*198.7*123.5(mm )
    Weight
    <6kg (including camera)

    Applications


    Some specific scenarios where this product can be used include:

    • Research-grade Raman spectroscopy detection system: 785nm Confocal Raman microscopy
    • Online Raman detection: Detection of pharmaceuticals, biological fermentation and chemical reaction process
    OEM miniature spectrometer high-sensitivity fiber spectrometer optic spectrometer

    Spectrometer Series


    Company Profile and Certification

    JINSP Company Limited originates from Tsinghua University and has 17 years of experience in developing spectroscopic technology.As a leading supplier of spectroscopic technology, JINSP Technology offers over twenty spectroscopic products across various fields, including pharmaceutical and chemical industries, public security, customs, and fiber optic spectrometers. Our products are available nationwide and are exported to over 30 countries, with cumulative sales exceeding 3,000 units.

    OEM miniature spectrometer high-sensitivity fiber spectrometer optic spectrometerOEM miniature spectrometer high-sensitivity fiber spectrometer optic spectrometer

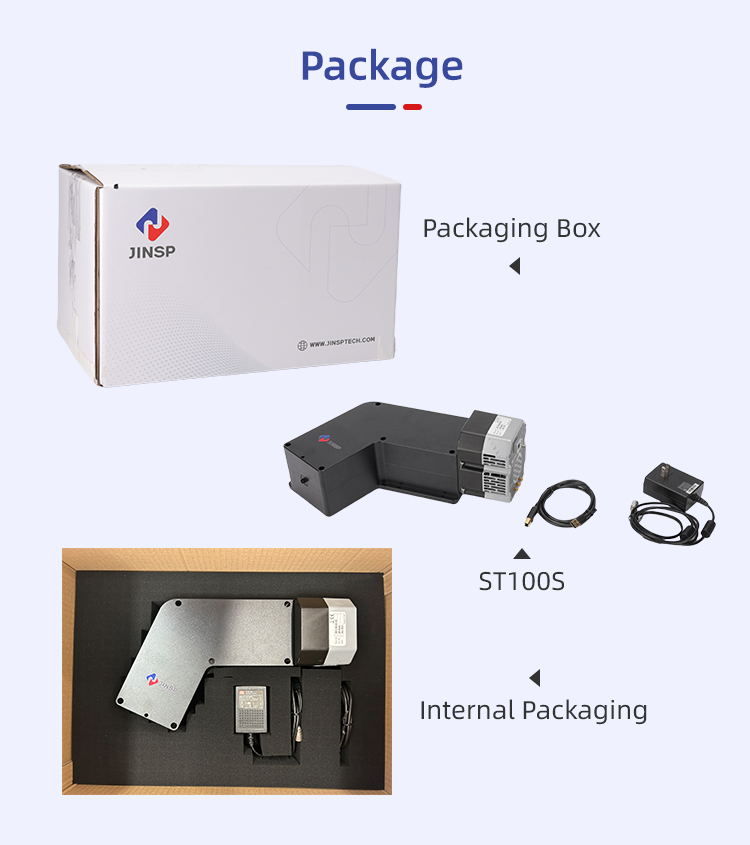

    Packing

    FAQ

    Q1:This is the first time I use,is it easy to operate?

    A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.

    Also our technicians will offer professional tecnical opearation meetings.

    Q2:Can you offer a operation training?

    A2:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local

    support( installation , training, debugging, maintenance ).

    Q3:How to receive a best price in the shortest time?

    A3:When you send us an inquiry,please kindly offer details with wavelength,detector,effective pixels,focal length

    and so on.We will send you quotation with details soon to your email.

    Q4:If the spectrometer has problem in my place,how could I do?

    A4:The spectrometer has one year warranty.If it breaks down,our technician will figure out what the problem maybe,

    according to client's feedback.We can repair for free within one year warranty.

    Q5:Which payment can be acceptable ?

    A5:We could accept the payment by T/T, Paypal, Western Union,L/C, etc.
