    Fiber Raman Spectrometer Ultra-Miniature Optic Mini Spectrometer with Linear Array CMOS Detector Chip Type

    Ask Lasest Price
    Brand Name : JINSP
    Model Number : SR50C
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100 PCS/70-90 days
    Delivery Time : 30-50working days
    • Product Details
    • Company Profile

    Fiber Raman Spectrometer Ultra-Miniature Optic Mini Spectrometer with Linear Array CMOS Detector Chip Type

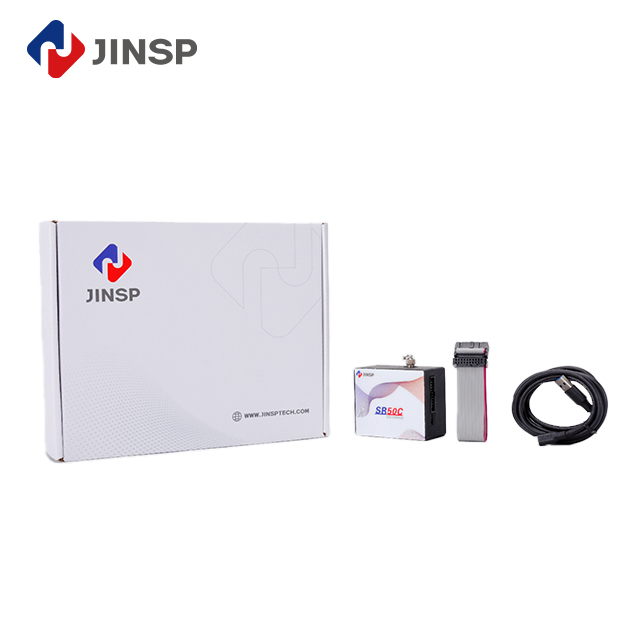

    SR50C Fiber Optic Spectrometer

    Product Description:

    With an effective pixel of 2048 and a linear array CMOS chip type, specifically the Hamamatsu S11639, this Fiber Spectrometer can accurately detect and measure the intensity of light across a broad wavelength range. It also features a compact design, measuring only 76mm*65mm*36mm, making it easy to use and carry around.

    The Universal Compact Fiber Spectrometer is equipped with a USB 2.0 or Serial Port data output interface, enabling users to easily transfer data to a computer or other devices. This feature ensures that users can analyze and interpret data in real-time, allowing for a more efficient and effective data collection process.


    NoItemDescription
    1NameSR50C Fiber Optic Spectrometer
    2Chip TypeLinear array CMOS, Hamamatsu S11639
    3Effective Pixel2048
    4Sensing Area28.7mm *0.2mm
    5Optical DesignM Type C-T light path
    6Numerical Aperture
    0.14
    7Entrance Slit Width
    10μm, 25μm, 50μm, 100μm, 200μm
    (customizable)
    8Dimensions
    76mm*65mm*36mm
    9Weight220g

    Applications:

    The JINSP SR75C is suitable for a wide range of applications, including but not limited to:

    • Research and development laboratories
    • Quality control and assurance in manufacturing
    • Environmental monitoring
    • Food and agriculture industry
    • Medical and pharmaceuticals industry

    The product has an effective pixel of 2048 and a weight of 220g, making it lightweight and easy to carry around. It operates in a wavelength range of 200nm to 1100nm, with support for customizing. The Fiber Connector used is FC/PC, which is compatible with multiple fiber types.

    The JINSP SR75C has an operating humidity of less than 90% RH (no condensation), making it suitable for use in various environmental conditions.

    Technical Characteristics

    Wide Spectral Range Supports customized spectrum range of 200-1000nm

    High Signal-to-Noise Ratio Low-noise CMOS signal processing circuit, with excellent signal-to-noise ratio

    High Luminous Flux Integrated with cylindrical mirror to improve the luminous flux

    Low Temperature Drift Integrated Temperature Sensor and Temperature Drift Compensation Algorithm

    Small Volume, Lightweight and Excellent Performance

    JINSP Company Limited has won the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate and the China Patent Excellence Award, and related products have been obtained has won authoritative awards such as the Geneva International Invention Award, the Beijing New Technology and New Product Certificate, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.GB/T 40219-2021 "General Specification for Raman Spectrometer".

    FAQ:

    Q1: What is the brand name of this product?

    A1: The brand name of this product is JINSP.

    Q2: What is the model number of this spectrometer?

    A2: The model number of this spectrometer is SR75C.

    Q3: Does this product have any certification?

    A3: Yes, this product has CE certification.

    Q4: Where is this spectrometer made?

    A4: This spectrometer is made in China.
