    High-Efficiency Near-Infrared Fiber Spectrometer for Accurate Spectral Detection

    Ask Lasest Price
    Brand Name : JINSP
    Model Number : SR100N25
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 5PCS/90-120 days
    Delivery Time : 90-120 working days
    • Product Details
    • Company Profile

    High-Efficiency Near-Infrared Fiber Spectrometer for Accurate Spectral Detection

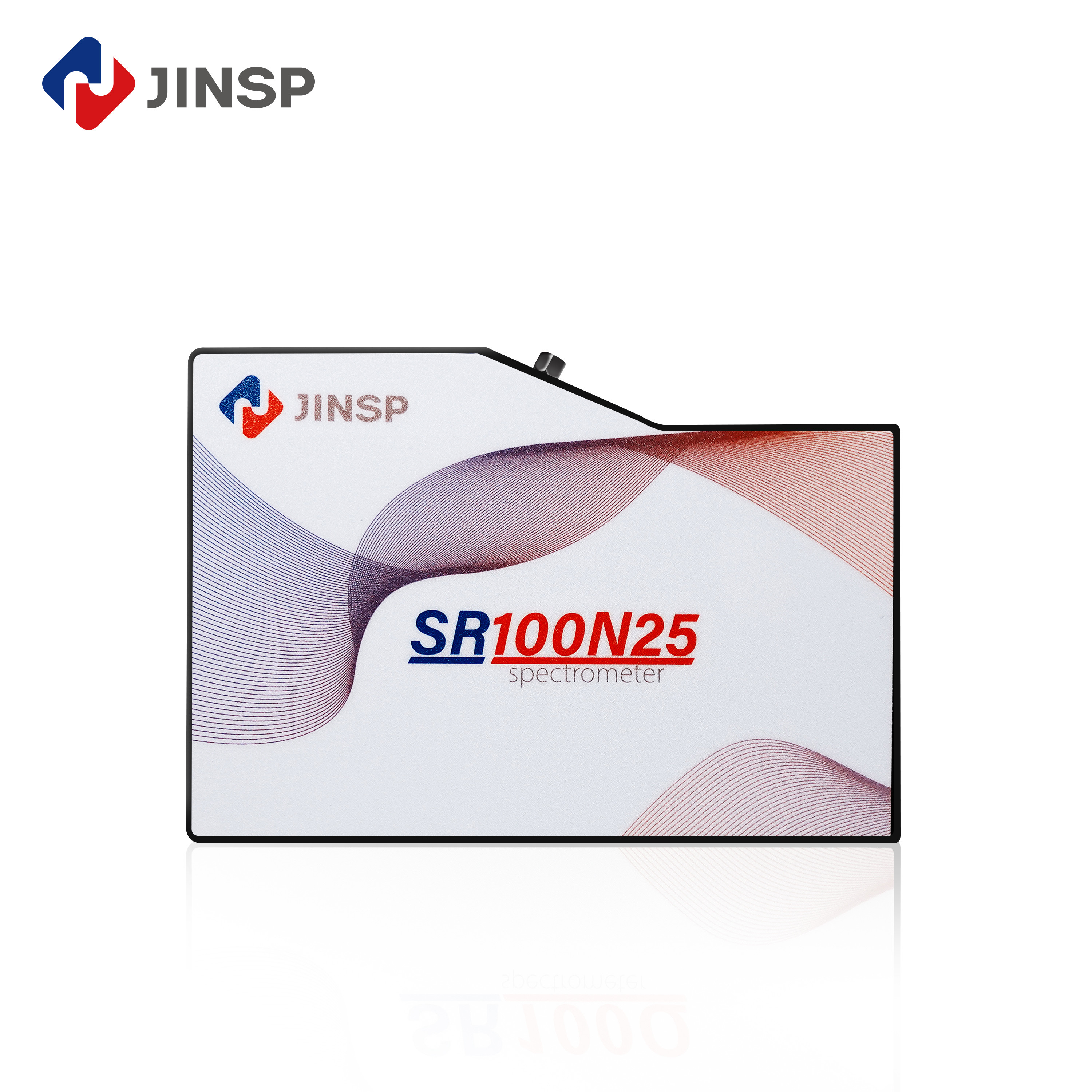

    SR100N25 Cooled Near-Infrared Spectrometer

    The JINSP SR100N25 near-infrared refrigerated spectrometers are versatileinstruments with applications spanning a broad wavelength range of 0.9 to 1.7μm or 0.9 to 2.5μm, respectively. These spectrometers are equipped with integrated light filters thateffectively screen out visible light and remove high-order modes. Additionally, they feature a cooled 512-pixel area array InGaAs sensor, ensuring high resolution and minimal stray of light. These spectrometers are suitable for detecting near-infrared spectra throughtransmission, reflection, or absorption methods.

    High-Efficiency Near-Infrared Fiber Spectrometer for Accurate Spectral Detection

    Specifications:


    Product Name
    SR100N25 Cooled Near-Infrared Spectrometer
    Entrance Slit Width
    5μm,10μm,25μm,50μm (customizable)
    Wavelength Range
    900~2500nm
    Optical Resolution
    6.3nm(@25μm)
    Dimensions
    178mm*123mm*49mm
    Weight21.7kg

    Technical Characteristics


    » 512 pixels, cooled type, high resolution, low stray of light

    » Receive SMA905 fiber input to obtain free space optical
    » Compatible with USB or UART interface to output measured spectrum data
    » Lens surface is plated with gold film, high efficiency of near-infrared reflection

    Typical Applications


    Moisture content measurement and wastewater testing

    Substance detection such as fat, oil, protein and fiber

    Grain and fodder quality testing
    Identification of illegal drugs components
    Our products mostly include:
    --UV VIS NIR fiber optic spectrometers;
    --Desktop/portable, online Raman analyzers for laboratory or indutrial liquid & gas analysis;
    --On-site rapid detectors/identifiers based on Raman technology for drugs, liquid, food safety, explosive & hazardous materials, pharmaceutical industry etc;
    High-Efficiency Near-Infrared Fiber Spectrometer for Accurate Spectral Detection
    FAQ
    Q1:This is the first time I use,is it easy to operate?
    A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.Also our technicians will offer professional tecnical opearation meetings.
    Q2:Can your offer a operation traning?
    A2:
    Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support
    ( installation , training, debugging, maintenance ).
    Q3:What's your time for delivery?
    A3:
    Around 2-3 months.
    Q4:What about your quality assurance?
    A4:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
