    Low Noise Miniature Fiber Optic Spectrometer for 200nm-1100nm Wavelength Range and Compact Dimensions of 110mm*95mm*43mm

    Ask Lasest Price
    Brand Name : JINSP
    Model Number : SR75C
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100 PCS/70-90 days
    Delivery Time : 30-50 working days
    • Product Details
    • Company Profile

    Low Noise Miniature Fiber Optic Spectrometer for 200nm-1100nm Wavelength Range and Compact Dimensions of 110mm*95mm*43mm

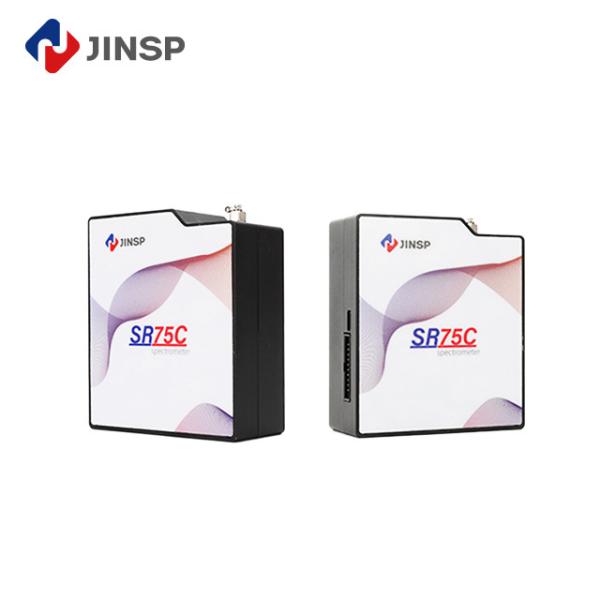

    Miniature Fiber Optic Modular Spectrometer JINSP SR75C

    The compact size of this device is truly remarkable, housing a high-sensitivity linear array sensor that is capable of covering an extensive range. This sensor is not limited to just the visible spectrum; it also extends its capabilities into the ultraviolet and near-infrared regions. Specifically, it can detect wavelengths ranging from 200 nanometers all the way up to 1000 nanometers, making it a versatile tool for a variety of applications.


    Moreover, this advanced sensor is equipped with USB connectivity, which greatly simplifies the process of integrating it into industrial systems. Its compatibility with USB interfaces ensures that it can be easily connected to computers and other control devices, facilitating seamless data transfer and control. This feature is particularly advantageous for industrial integration, as it allows for straightforward incorporation into existing setups without the need for extensive modifications or specialized hardware.


    In summary, this compact yet powerful sensor is designed to meet the demands of modern industrial applications. Its broad spectral coverage, combined with convenient USB connectivity, makes it an ideal choice for applications requiring precise and efficient detection across multiple spectral ranges. The ease of integration and control further enhances its appeal, ensuring that it can be quickly and effortlessly incorporated into various industrial processes.


    Technical Parameters:

    Detector

    Chip Type

    Linear array CMOS, Hamamatsu S11639

    Effective Pixel

    2048

    Pixel Size

    14μm *200μm

    Sensing Area

    28.7mm *0.2mm

    Optical
    Parameters

    Optical Design

    M Type C-T light path

    Numerical Aperture

    0.085

    Entrance Slit Width

    10μm, 25μm, 50μm, 100μm, 200μm
    (customizable)

    Spectrum Range and Resolution

    See model table for details

    Fiber Input Interface

    SMA905, free space

    Electrical
    Parameters

    Integration Time

    1ms-60s

    Signal-to-Noise Ratio

    650:1 (4ms)

    Data Output Interface

    USB 2.0 or serial port

    ADC Bit Depth

    16-bit

    Power Supply

    DC 4.5V to 5.5V (type @5V)

    Operating Current

    < 500mA

    Others

    Operating Temperature

    10°C ~ 40°C

    Storage Temperature

    -20°C ~ 60°C

    Operating Humidity

    <90%RH (no condensation)

    Dimensions

    110mm*95mm*40.5mm

    Weight

    310g


    List of Product Models:

    Model

    Spectral Range (nm)

    Resolution (nm)

    Slit (μm)

    SR75C-G02

    510~1000
    (VIS-NIR)

    0.8

    25

    0.5

    10

    SR75C-G04

    SR75C-G06

    200~450(UV)

    330~570(VIS)

    0.3-0.5

    25

    SR75C-G07

    SR75C-G08

    550~750(VIS)

    750-900(NR)

    0.2-0.3

    10

    SR75C-G09

    180~340( UV)

    0.3

    25

    SR75C-G10

    500~600(VIS)

    0.15~0.2

    10

    * Customization available for other ranges


    Typical Applications:

    • High Signal-to-Noise Ratio: Low-noise CMOS signal processing circuit, with excellent signal-to-noise ratio
    • Sensing Area: 28.7mm * 0.2mm
    • Detection of absorptance,transmittance, and reflectance in ultraviolet, visible, and near-infrared spectra
    • LIBS: Used for analyzing soil and minerals in geological detection and mining-related work
    • Water Quality and Environmental Protection:Online monitoring of organic substances and dissolved oxygen levels in environmental water

    Technical Characteristic:

    • Wide Spectral Range Supports customized spectrum range of 200-1000nm

    • High Signal-to-Noise Ratio Low-noise CMOS signal processing circuit, with excellent signal-to-noise ratio

    • High Resolution M-shape C-T optical design

    Company Introduction:

    JINSP Company Limited has won the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate and the China Patent Excellence Award, and related products have been obtained has won authoritative awards such as the Geneva International Invention Award, the Beijing New Technology and New Product Certificate, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.GB/T 40219-2021 "General Specification for Raman Spectrometer".
    Low Noise Miniature Fiber Optic Spectrometer for 200nm-1100nm Wavelength Range and Compact Dimensions of 110mm*95mm*43mm
    Low Noise Miniature Fiber Optic Spectrometer for 200nm-1100nm Wavelength Range and Compact Dimensions of 110mm*95mm*43mmLow Noise Miniature Fiber Optic Spectrometer for 200nm-1100nm Wavelength Range and Compact Dimensions of 110mm*95mm*43mm
    FAQ

    Q1: Is the price of this product negotiable?

    A1: Yes, the price of this product is negotiable.

    Q2: What are the payment terms for this product?

    A2: The payment terms for this product are T/T and Western Union.

    Q3: What is the supply ability for this product?

    A3: The supply ability for this product is 100 PCS/70-90 days.

    Q4: How long does it take to deliver this product?

    A4: The delivery time for this product is 30-50 working days.
